Selecting the right entrance system for your business facility is not a decision to be taken lightly. A commercial garage door is a critical component that affects daily workflow, security, energy efficiency, and employee safety. Whether you are running a bustling warehouse, an automotive repair shop, or a sleek retail showroom, the dimensions and type of door you choose must align perfectly with your operational needs.

Unlike residential doors which have somewhat standardized sizes, commercial garage door dimensions vary significantly based on industry requirements. A door that is too narrow can cause bottlenecks for delivery trucks, while a door that is too short might prevent specialized machinery from entering. This guide delves into the various sizes, types, and considerations to help you make an informed investment for your property.

Commercial Industries That Use Garage Doors

Before exploring dimensions, it helps to understand the diverse applications of these doors. From fire stations that require rapid egress to cold storage facilities needing maximum thermal efficiency, the “right size” is dictated by the vehicle and cargo passing through.

• Warehousing & Distribution: Requires tall, wide doors for semi-trucks and forklifts.

• Automotive: Needs moderate height for car lifts but durability for high cycles.

• Retail & Restaurants: Often utilize glass aluminum doors for aesthetics and light.

• Agriculture: Demands massive doors for combines and tractors.

Our Industrial Garage Door Sizes and Types

When planning your facility, knowing the standard sizes available can help you design your openings or select the correct replacement. While custom sizing is always an option, sticking to standard dimensions is often more cost-effective and ensures easier maintenance.

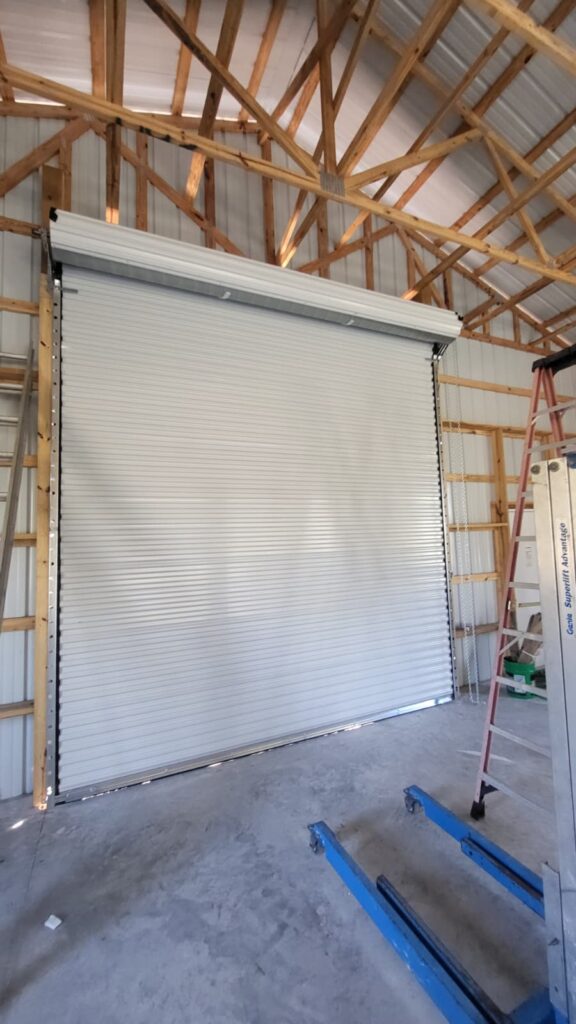

1. Rolling or Coiling Commercial Garage Doors

These are the workhorses of the industrial world. Constructed from interlocking steel slats, they coil up into a barrel above the opening, saving ceiling space.

• Standard Dimensions: Typical sizes range up to 30 feet wide by 28 feet high.

• Best For: Facilities with limited headroom or overhead obstructions like sprinklers and cranes. They offer superior security and durability against impact.

2. Sectional Ribbed Steel Garage Doors

Similar to residential doors but built tougher, these consist of horizontal panels that slide up tracks along the ceiling.

• Standard Dimensions: Commonly found in sizes up to 32 feet wide by 24 feet high.

• Best For: Warehouses and loading docks where thermal efficiency (insulation) is a priority. The ribbed design adds structural rigidity to handle wind loads.

3. Aluminum and Steel Full-View Doors

These doors prioritize visibility and aesthetics, featuring glass panels encased in an aluminum frame.

• Standard Dimensions: Generally available up to 24 feet wide by 18 feet high.

• Best For: Fire stations, car dealerships, and trendy restaurants that want to merge indoor and outdoor spaces.

4. Insulated Commercial Garage Doors

For climate-controlled environments, insulation is non-negotiable. These doors feature a “sandwich” construction of steel-foam-steel.

• Standard Dimensions: Because of the added weight of insulation, these are often slightly smaller, typically maxing out around 30 feet wide by 24 feet high.

• Best For: Food processing plants, pharmaceutical storage, and any business where temperature stability is critical for product integrity or employee comfort.

How to Choose the Right Size for Your Business

Selecting the correct commercial garage door dimensions involves more than just measuring the hole in the wall. You must consider the largest vehicle or equipment that will ever need to enter.

Width Considerations:

• Forklifts: A minimum of 8 to 9 feet is standard.

• Box Trucks: Aim for 10 to 12 feet.

• Semi-Trucks: You generally need at least 14 feet of width to allow for mirrors and safe maneuvering.

Height Considerations:

• Standard Vehicles: 8 feet is sufficient.

• Delivery Trucks: 12 to 14 feet is the industry standard to clear the top of the box.

• Heavy Machinery: Combines or large excavators may require 16 to 20 feet or more.

Other Factors to Consider When Choosing a Commercial Garage Door

Beyond raw dimensions, several functional factors should influence your decision.

Security Grilles vs. Solid Doors:

Do you need airflow and visibility while keeping intruders out? Security grilles are perfect for malls and pharmacies. They come in various patterns and can fit openings up to 30 feet wide.

Cycle Rating:

How many times a day will the door open? Standard springs are rated for 10,000 cycles. A busy distribution center might burn through that in six months. High-cycle springs (rated for 50,000 or 100,000 cycles) are essential for longevity.

Wind Load:

In Florida, this is critical. Your door dimensions affect its wind load rating. Larger doors require heavier reinforcement struts and stronger tracks to withstand hurricane-force winds without buckling.

How to Measure for a Garage Door

Precision is key. A commercial door must fit tightly to seal against weather and pests.

1. Measure Width: Measure the opening from jamb to jamb at the widest point.

2. Measure Height: Measure from the floor to the bottom of the header.

3. Check Sideroom: Measure the space from the edge of the opening to the wall. You need room for the vertical tracks, electric operator, and chain hoist.

4. Check Headroom: Measure from the header to the ceiling or lowest obstruction (lights, pipes). This determines if you can use a standard lift, high lift, or vertical lift track system.

At Garage Door On, we specialize in helping businesses navigate these complexities. Whether you need a massive rolling steel door for a hanger or a sleek glass door for a showroom, we can ensure the dimensions are perfect and the installation is flawless. Contact us today for a site assessment.
